- Calculation for Motorcycle rear suspension -


Dimension a: mm

Dimension b:

mm

Dimension c:

mm

Dimension d:

mm

Dimension L0:

mm

Dimension s:

mm

Linear suspension travel, Fa:

mm

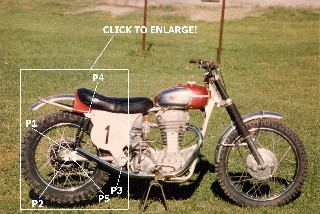

P1 = lower shock absorber attachment

P2 = centre, rear wheel (max. rear position)

P3 = rear swing pivot

P4 = upper shock absorber attachment

P5 = 90° angle on line P2 - P3 to P1

a = distance P2 to P3

b = distance P3 to P5

c = distance P3 to P4

d = distance P1 to P5



L0 = extended shock absorber length eye to eye

s = shock absorber suspension travel, rubber buffer not considered

Fa = rear wheel linear suspension travel



Front:

max. 180mm

Rear:

Pre 65 max. 100mm + 30%

Pre 70 max. 100mm + 30%

Pre 72 max. 100mm. + 30%













































Copyright Patrik Laursen
